Description

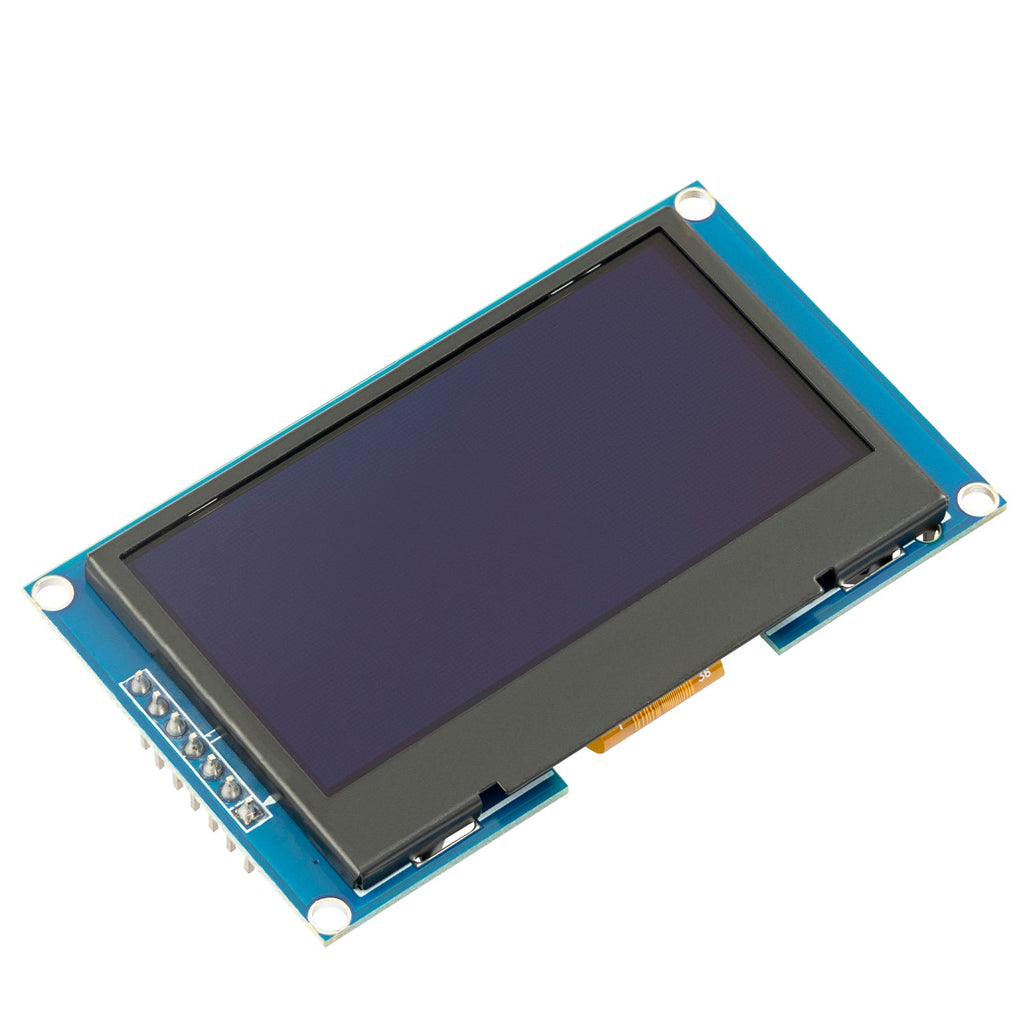

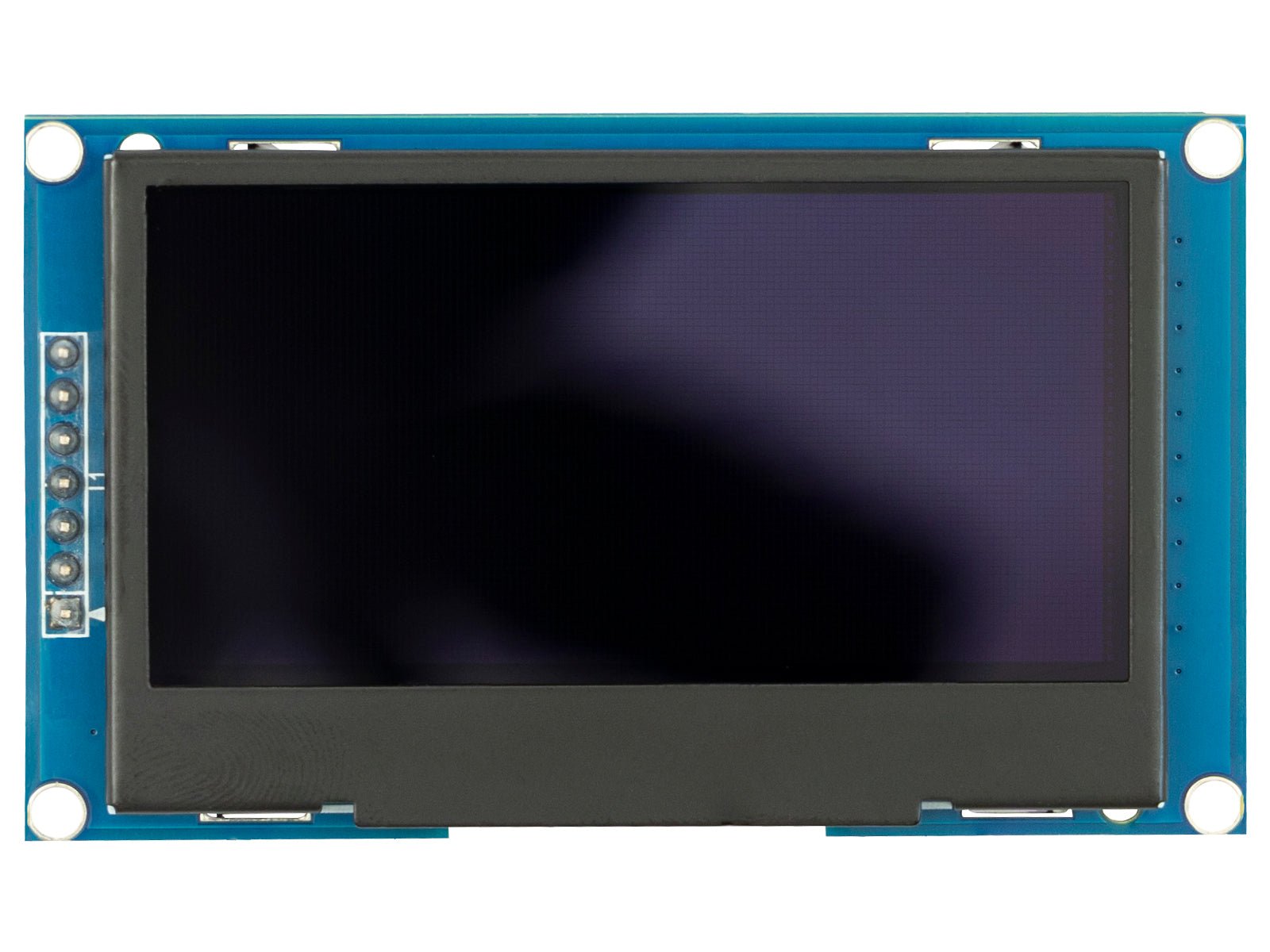

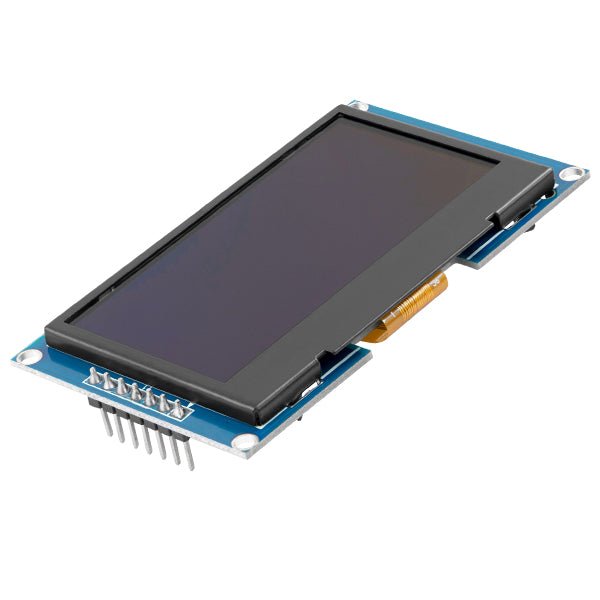

This is a display module with a resolution of 128 x 64 pixels in which the emitting electroluminescent layer is a film of an organic compound that emits light in response to an electric current. The OLED display module works without backlighting and can emit light on its own. In low ambient light, e.g. in a dark room, an OLED screen can achieve a higher contrast ratio than an LCD. The OLED display module also has a much faster response time than an LCD.
Features:
|
Display size |
2.42" |
|
Display mode |
Passive matrix OLED |
|
resolution |
128 x 64 pixels |
|

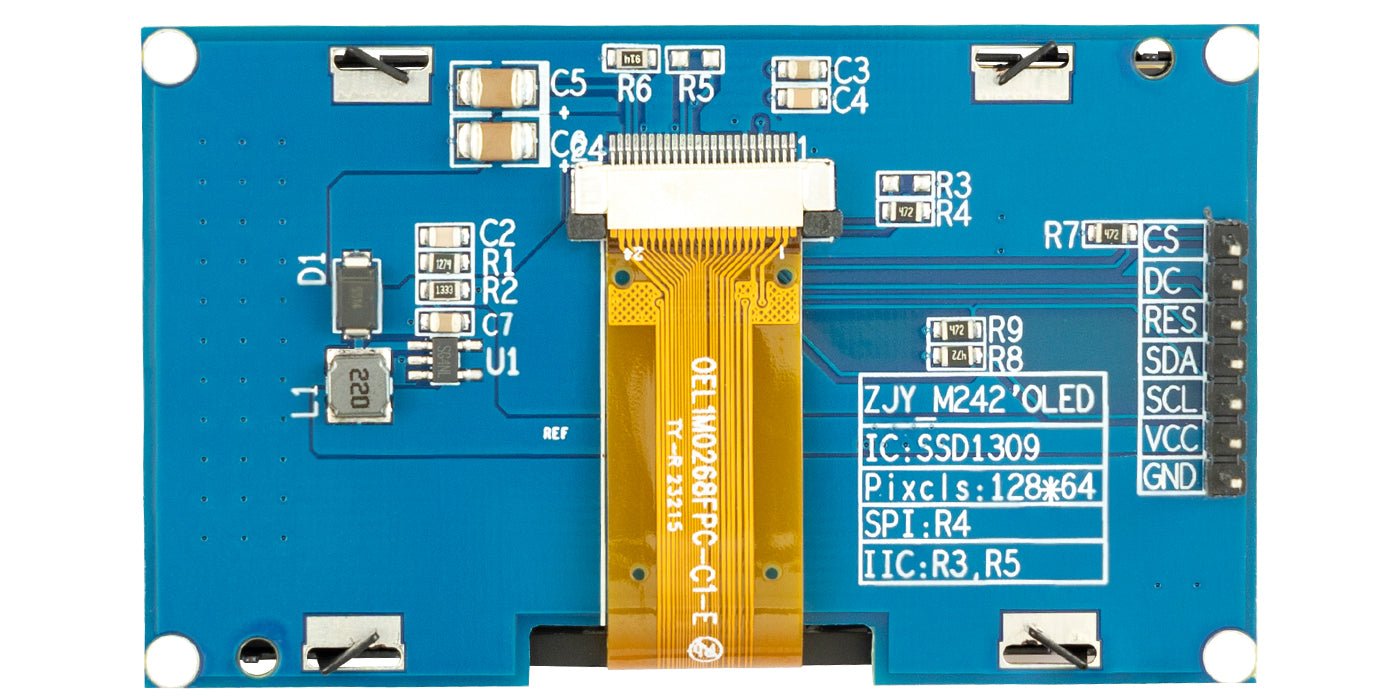

Driver IC |
SSD1309 |
|
Voltage |
3.3-5V |
|
Show color |
Monochrome (white/green) |
|
Module dimension |
66.89 mm × 29.05 mm |
|
Interface |
SPI |
|
Operating temperature |
-40°C~70°C |
|
Number of pins |
7 |
Energy efficient & high contrast:
Thanks to OLED technology, the display is characterized by low power consumption and high contrast, which makes it perfect for battery-powered and mobile applications.
QUICK-START-GUIDE
When you purchase one of our high-quality products, you will also receive an included e-book for a quick introduction to the world of microelectronics.
