Description

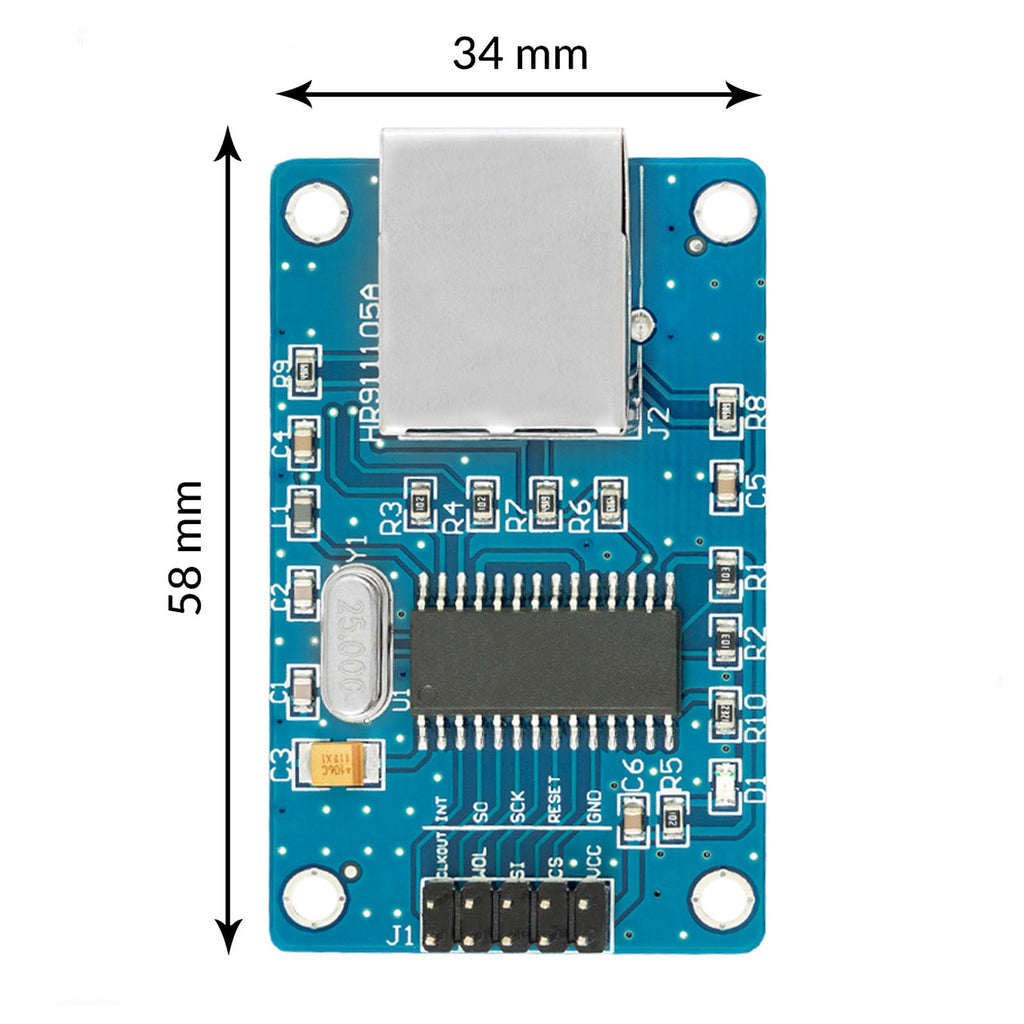

This network module is ideal for establishing a network connection with a microcontroller in a simple way. It is equipped with a conventional RJ45 network jack and an ENC28J60 Ethernet controller. So you can set up a small web server, a chat server or a telnet client. The network module can be easily attached via the 10 socket pins. Dupont cables can also be used for a test setup.
Pin assignment
The pinout on the ENC28J60 network module is as follows:
- CLKOUT: Clock output
- WOL: Wake on Lan
- SCK: Serial clock input
- SI: Serial data input
- CS: Chip select
- VCC: Supply voltage +5V
- INT: Interrupt
- SO: Serial data output
- RESET: Reset
- GND: Ground (GND)
