Description

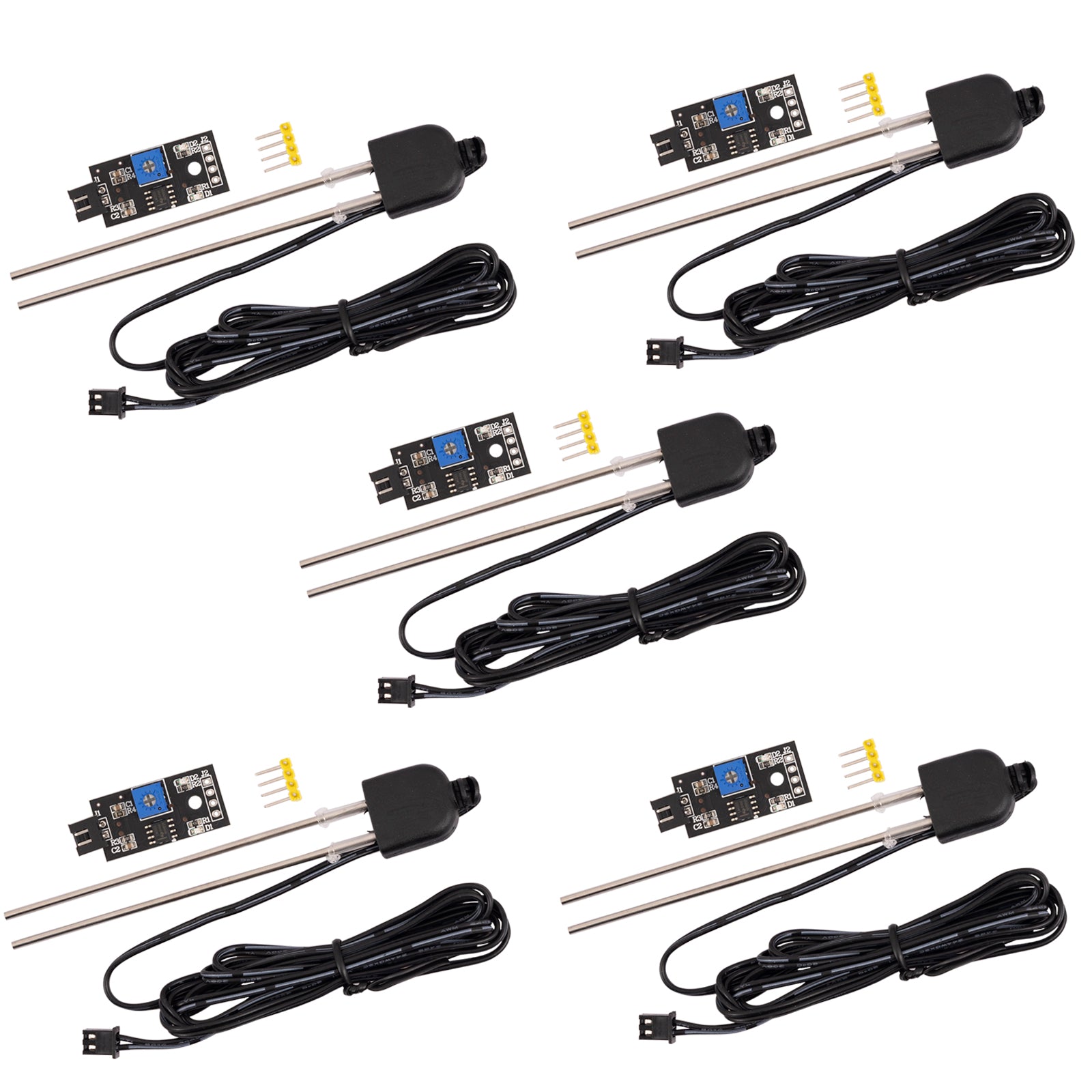

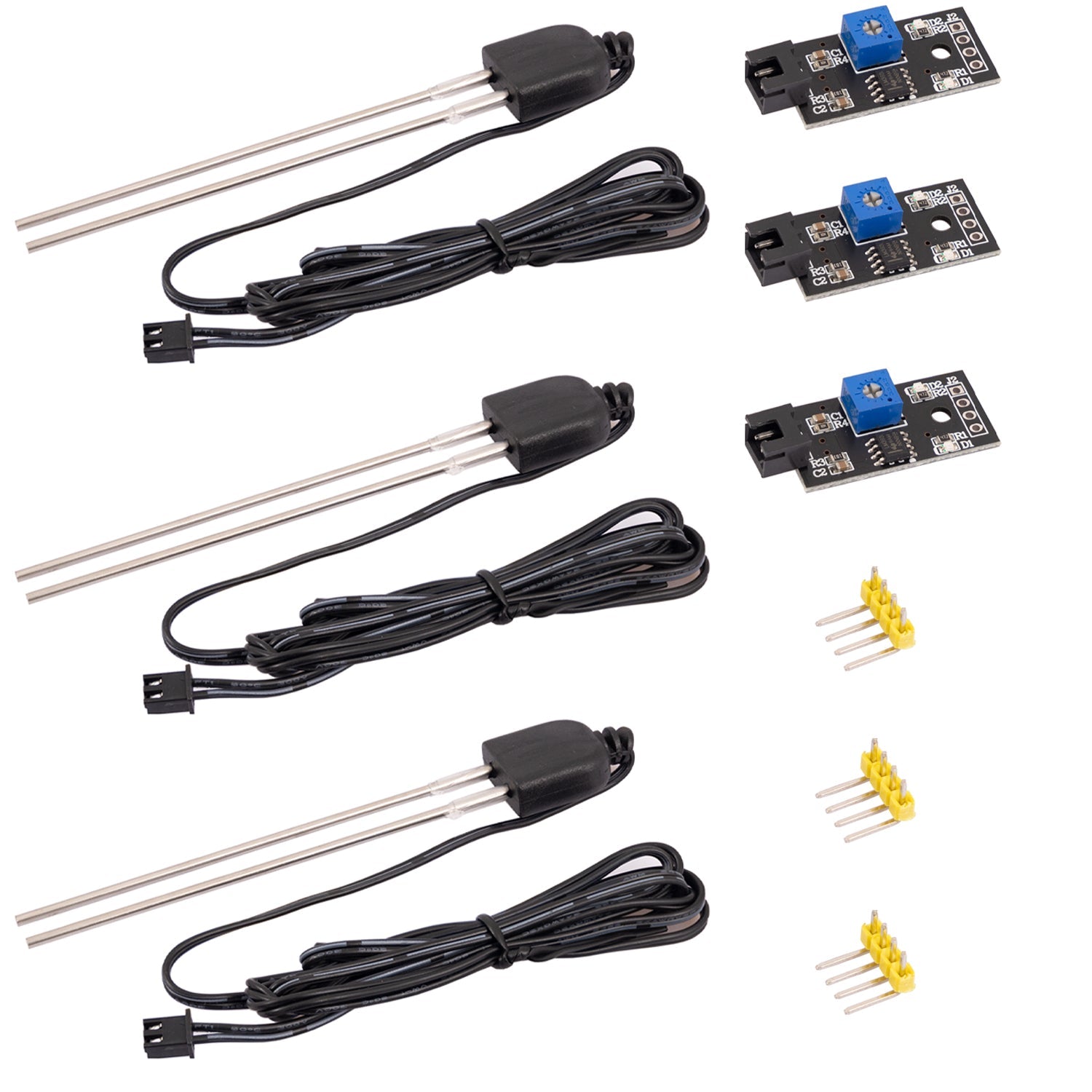

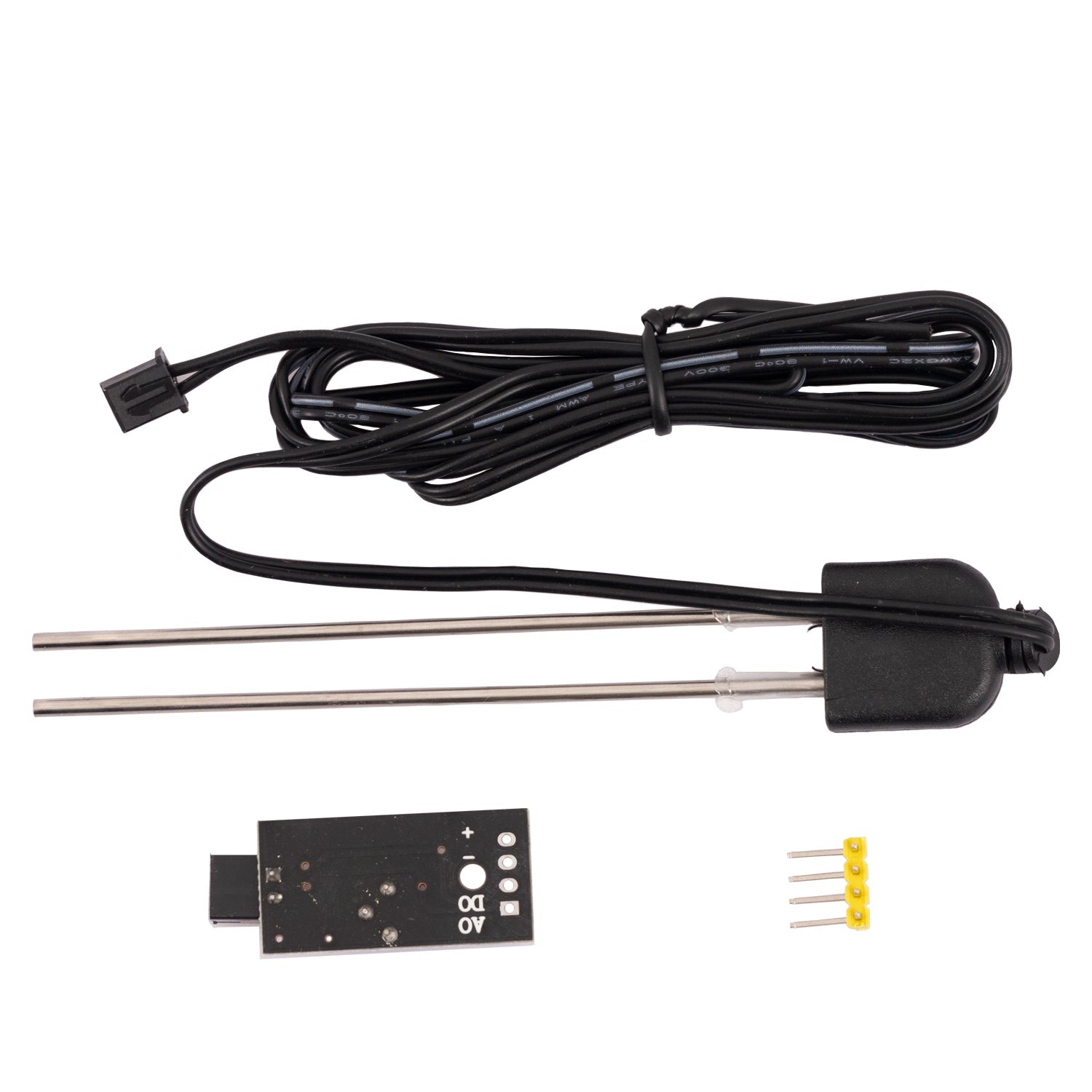

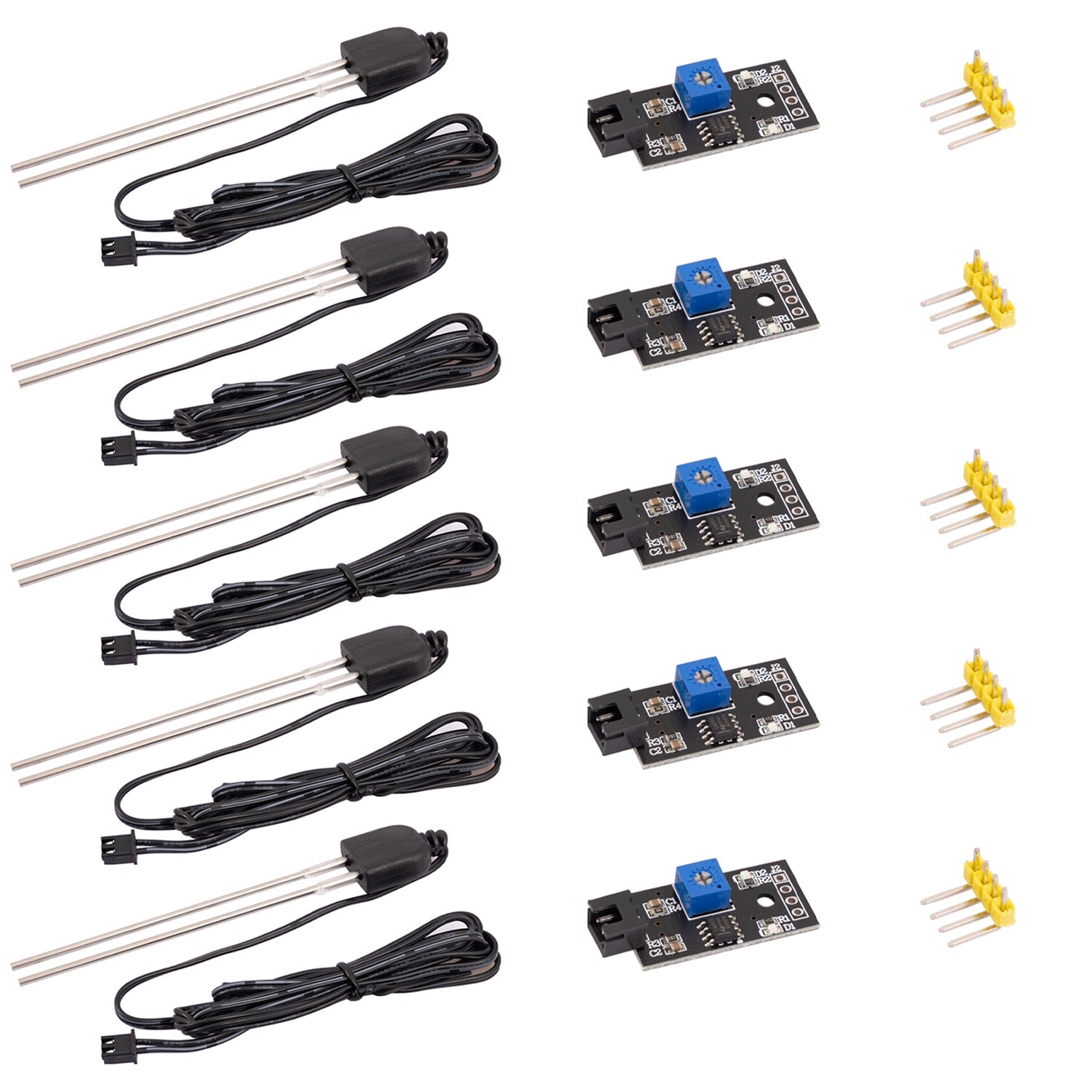

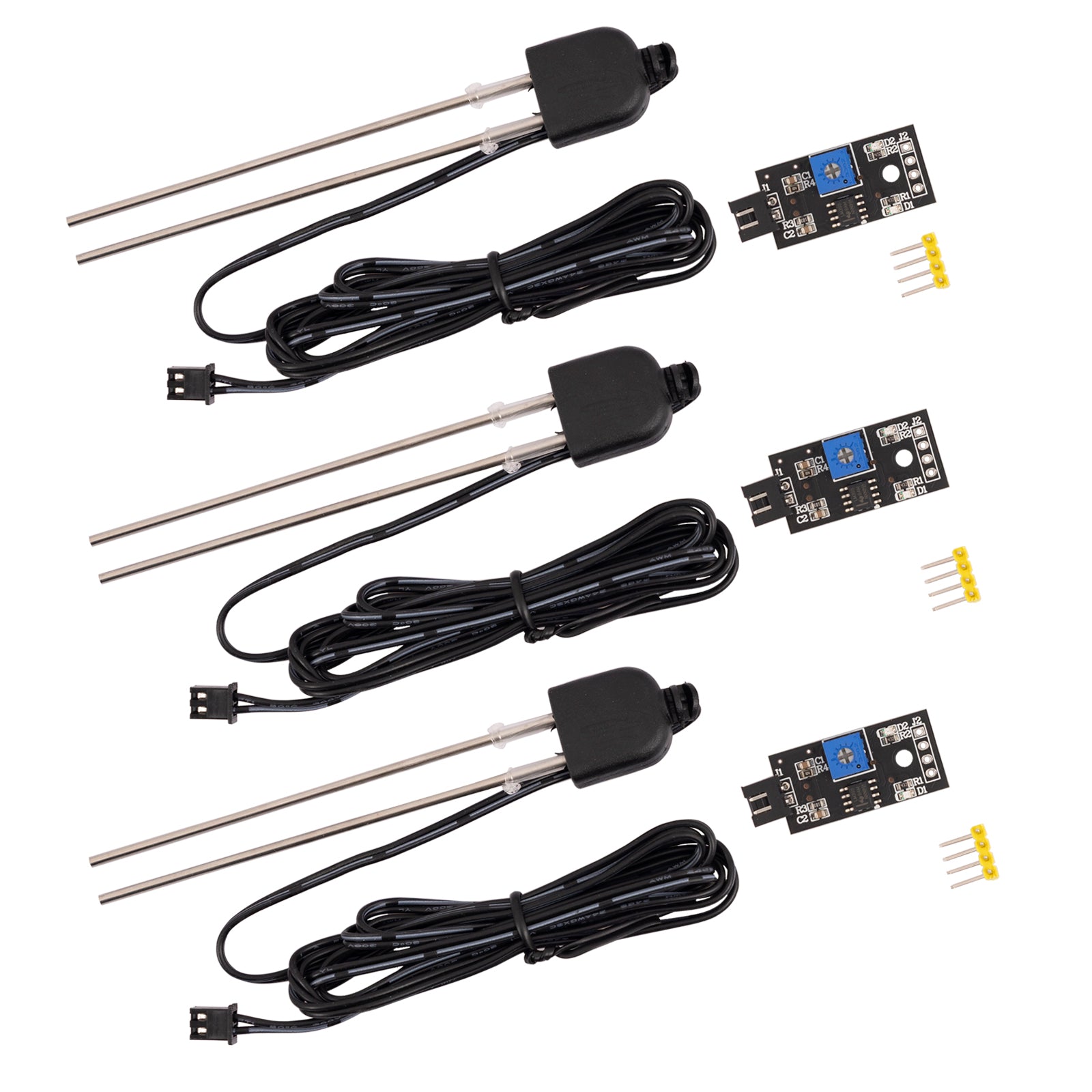

Azdelivery soil moisture device has a waterproof probe with high corrosion resistance, which ensures a long service life of at least 6 months in the ground. Soil moisture device with a widened sensor area can improve the electrical conductivity.
Instruction:
- "+" is the positive power connection, "-" is the negative connection. Do not connect upside down, otherwise the chip burns through.

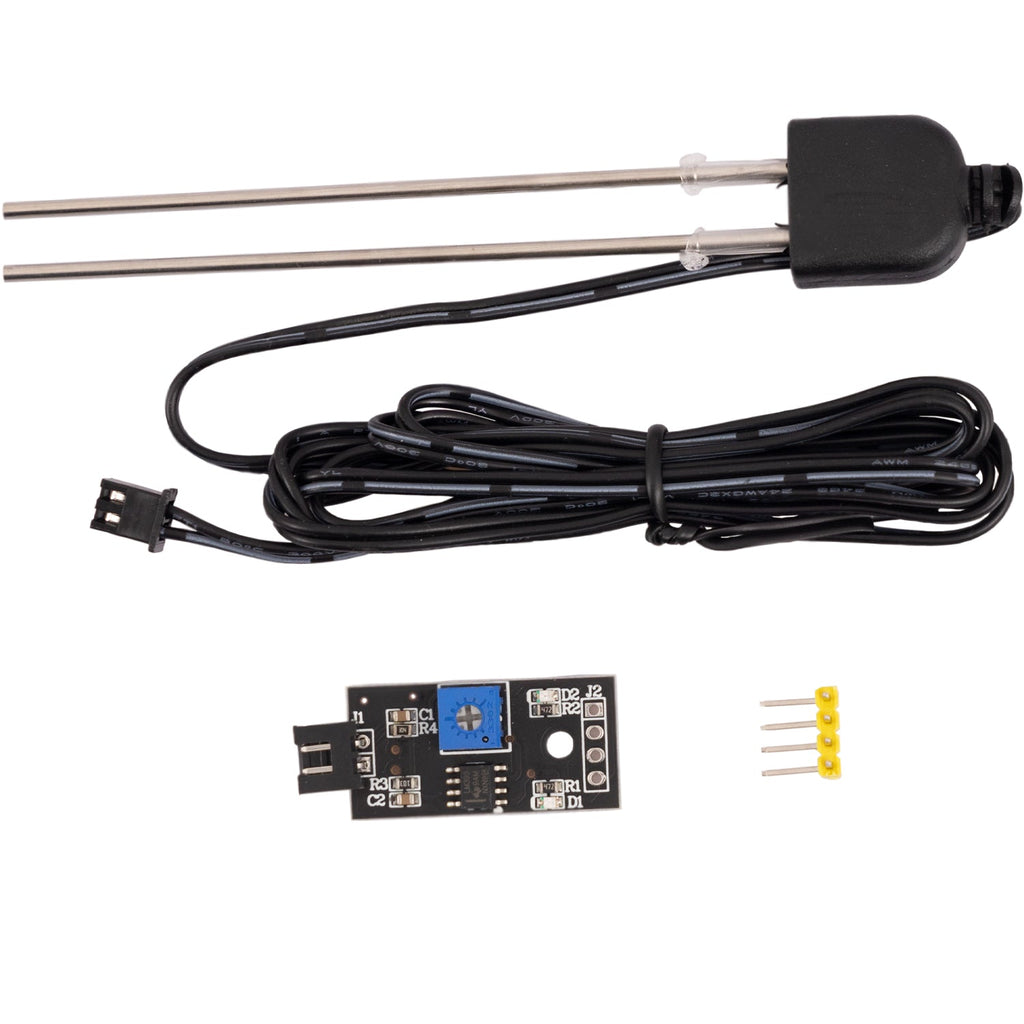

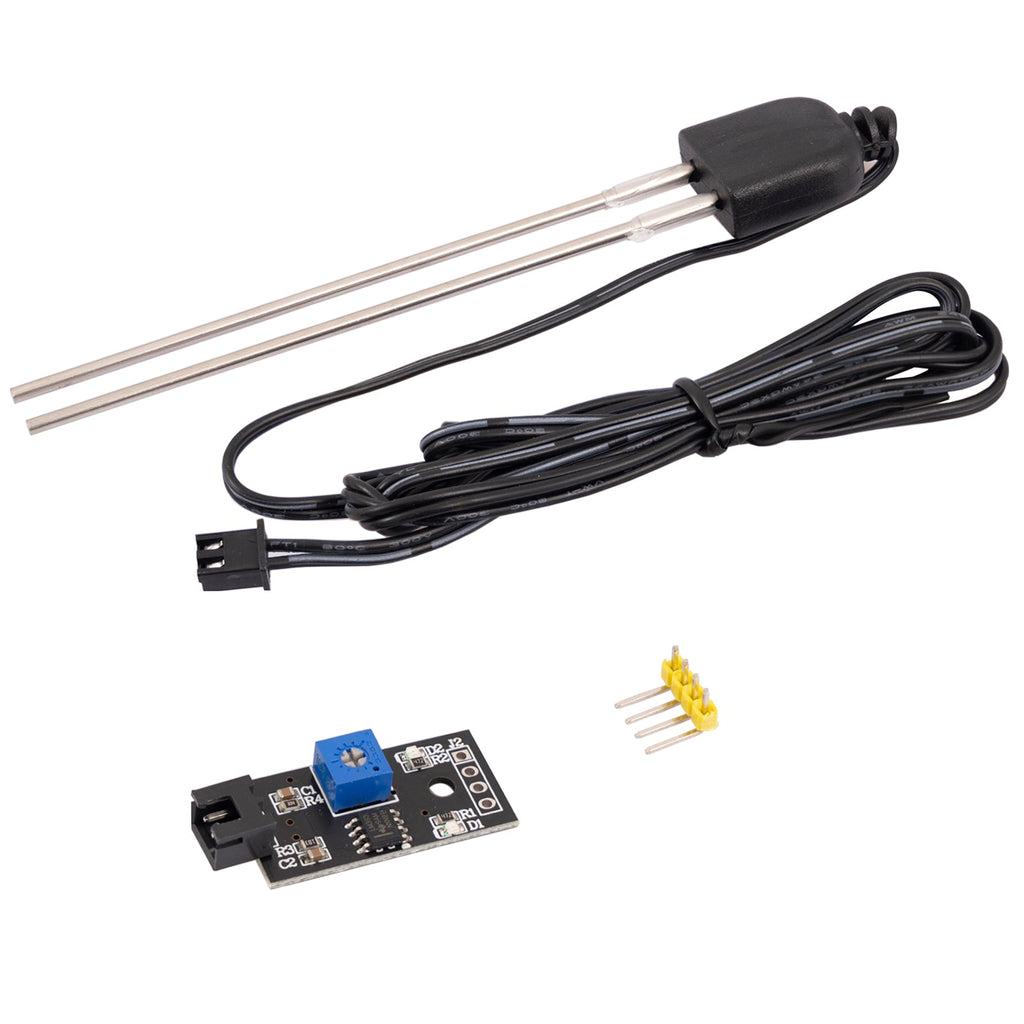

- There is an LED stream display on the P mark on the circuit board. It shines when the module works normally.
- Turn the blue potentiometer in or against clockwise to increase or reduce the detection threshold.
- If you turn the potentiometer clockwise so far that the LED display marked with "S" shines, this means that the test threshold has been exceeded.
Technical details:
| Operating voltage | DC 3.3-12V |
| Work stream | <20mA (starting current: <30ma) |
| Size of the board | 36 × 15 × 6 mm/1.42 × 0.59 × 0.23 inches (L × W × H) |
| Length of the sensor chairman | 8.8 cm/3.46 inches |
| Sensor | 5 mm |
| Sensorbell length | 1.2 meters /3.94ft |
| Sensor connection | XH2.54 2P |
| Do | Digital output of value (Doo output current is about 10 mA) |
| AO connection | Analog value output |
Resistant soil moisture sensor
The probe uses an analog resistance to measure the moisture content of the soil. He is a good plant assistant who informs you about whether your plants are thirsty and also used in the automatic irrigation system, in the garden, in the greenhouse, etc.
