Internet radio with the ESP32
Many radio stations can be heard as a MP3 stream over the Internet. Since the microcontroller ESP32 has WLAN skills on the one hand and on the other hand with two built-in digital/analog converters can convert the digital data stream into an analog signal, it offers itself as an ideal solution. In addition, a battery power supply, an audio amplifier, two speakers, a display for the transmitter display and an input device for the transmitter setting is required. The whole thing is rounded off with a housing from the 3D printer.
The following products of the project are included in the bundle:

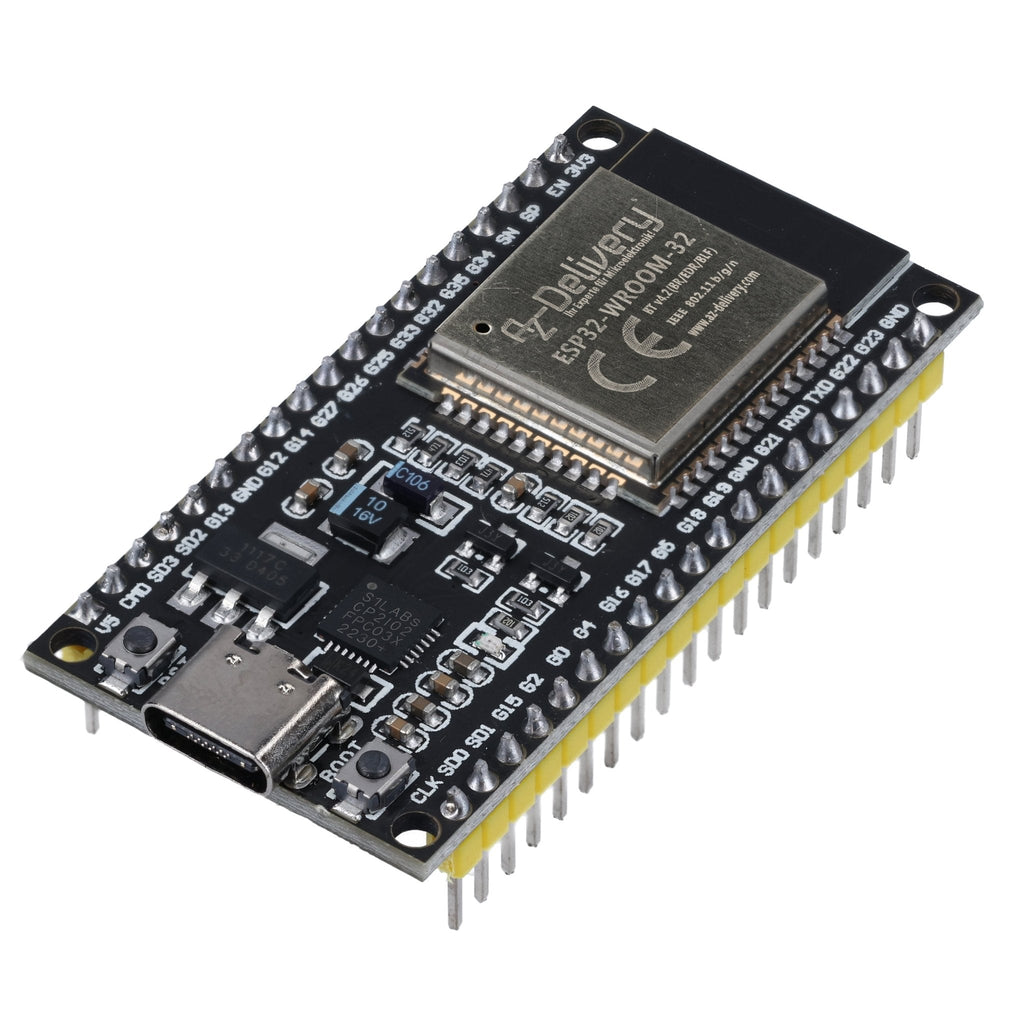

- ESP32 NODEMCU Module WiFi Development Board
- Pam8403 Digital Mini Audio amplifier
- 2 pieces DFPlayer Mini 3 Watt 8 ohm mini loudspeakers
- TP4056 Mini USB 5V 1A loading controller lithium Li
- MT3608 DC-DC power supply adapter step up module
- HD44780 1602 LCD module Display Bundle
- Ky-040 rotary angle gear rotary rotary encoder module
- MB-102 Breadboard Pushboard
These products are also required:
- EEMB 3.7V 2000mah Lipo battery
- Resistance resistor kit 525 pieces
- ELKO 1000UF / 10V
- Spring strips 19-pin
- Park bar 3-pin
- Park bar 4-pin
- Pencil bar 5-pin
- Rotary knobs for 6mm axis
- Jumper cable female too female
- Housing front part from the 3D printer
- Housing back from the 3D printer
- Lid for battery protection from the 3D printer
