Willkommen zu dem zweiten Teil der Bluetooth Display Reihe.
Wer das Display des ersten Teils schon fertig aufgebaut hat, wird festgestellt haben, dass man zwar sehr bequem beliebige Texte auf unserem Display eingeben kann, jedoch leider nur immer ein Text eingegeben werden kann und zudem auch noch dieser immer wieder neu eingeben werden muss, falls das Display vom Strom getrennt wird. Dies ist auf Dauer etwas mühselig. Daher werden wir im heutigen Teil die Möglichkeit vorsehen, feste Texte im internen EEPROM abzulegen und diese bei Bedarf wieder abzurufen.
Wir erweitern dazu unser serielles Menü um folgende Menüpunkte:
- • S - Read ALL EEPROM Banks
- • E - Erase ALL EEPROM Banks
- • W - Write sel. EEPROM Bank
- • R - Read sel. EEPROM Bank
- • P - Print EEPROM Bank on Display
Für diese Erweiterung laden dazu auf unseren Arduino UNO folgenden Code hoch:
#include <SPI.h> #include <Wire.h> #include <SoftwareSerial.h> #include <EEPROM.h> #include <LiquidCrystal.h> #include <avr/sleep.h> #define MaxInputBufferSize 20 // maximal 255 Zeichen anpassen an vlcdr #define EEpromSize 990 #define rLcdChr 20 #define LcdRows 4 #define interval 1000 // EEprom SpeicherzellenAdressen für Konfiguration #define EEFadeSeconds 993 #define EEPINA 996 #define EEPINC 997 #define EEPINDD 998 SoftwareSerial mySerial(7, 6); // RX, TX //LiquidCrystal(rs, enable, d4, d5, d6, d7) LiquidCrystal lcd(8, 13, 12, 11, 10, 9); //variables byte DisplayBankContent = 0; //Serial Input Handling char TBuffer; char Cbuffer[MaxInputBufferSize + 1]; //USB Code Input Buffer String Sbuffer = ""; //USB String Input Buffer int value; //USB Nummeric Input Buffer byte Ccount = 0; //Number received Chars byte Inptype = 0; boolean StrInput = false; boolean NumberInput = false; boolean DataInput = false; boolean EnterInput = false; byte MenueSelection = 0; byte SelectedMsg = 0; //Give Debug Informations over serial Interface boolean DebugMode = false; boolean EchoMode = true; //EEPROM int eeaddress; //EEPROM Adress Pointer byte EEPromBanks = 0; //Used for Calculating the EEPROM Banks //SerMnueControl byte MnuState = 0; // Maximale Menuetiefe 255 icl Sub byte Selectedbank = 0; //Real Time Clock long previousMillis = 0; // will store last time was measured long previousMillisB = 0; // will store last time was measured //Display Management boolean DisplayLock = false; boolean Directprint = false; byte DirectprintROW = 0; byte DirectprintLine = 0; boolean RefreshDisplay = false; byte FRMCheck = 0; // Used fpr Writing Operations to eeprom so save Wirte cycles void setup() { EEPromBanks = EEpromSize / ((rLcdChr) * LcdRows); lcd.begin(rLcdChr, LcdRows); lcd.clear(); lcd.setCursor(0, 0); lcd.print(" Bluetooth "); lcd.setCursor(0, 1); lcd.print(" Display "); mySerial.begin(9600); lcd.setCursor(0, 0); mySerial.flush(); } // ###################################################################################################### // void loop() { SerialcommandProcessor(); Displayprocessor(); } // ###################################################################################################### // void TextHeader(byte rowm) { mySerial.println("Text for Bank " + String( Selectedbank) + " ROW " + String (rowm) + ":"); } void SerialcommandProcessor() { int a; Inptype = 0; Inptype = SerInputHandler(); // 0 keine Rückgabe // 1 Nummer // 2 String // 3 Data if ((Inptype > 0) & (!Directprint)) { MenueSelection = 0; if ((MnuState < 2) && (Inptype == 2)) { Sbuffer.toUpperCase(); // For Easy Entering Commands } if ((Sbuffer == "S") && (MnuState == 0) && (Inptype == 2)) { MenueSelection = 3; } // Erasing ALL EEprom Content if ((Sbuffer == "E") && (MnuState == 0) && (Inptype == 2)) { MenueSelection = 4; } if ((Sbuffer == "YES") && (MnuState == 1) && (Inptype == 2)) { MenueSelection = 5; } if ((Sbuffer != "YES") && (MnuState == 1) && (Inptype == 2)) { MenueSelection = 6; } //Edit Selected Content if ((Sbuffer == "W") && (MnuState == 0) && (Inptype == 2)) { MenueSelection = 7; } if ((MnuState == 2) && (value < EEPromBanks) && (Inptype == 1)) { MenueSelection = 8; } if (MnuState == 3) { MenueSelection = 9; } if (MnuState == 4) { MenueSelection = 10; } //Display Selected Content if ((Sbuffer == "P") && (MnuState == 0) && (Inptype == 2)) { MenueSelection = 11; } if ((MnuState == 5) && (Inptype == 1)) { MenueSelection = 12; } if ((MnuState == 6) && (Inptype == 1)) { MenueSelection = 14; } if ((Sbuffer == "D") && (MnuState == 0) && (Inptype == 2)) { MenueSelection = 15; } if ((Sbuffer == "Z") && (MnuState == 0) && (Inptype == 2)) { MenueSelection = 16; } if (MnuState == 9) { MenueSelection = 20; } if (MnuState == 10) { MenueSelection = 21; } switch (MenueSelection) { case 1: { break; } case 2: { break; } case 3: { mySerial.println("Read EEEPROM Content:" ); mySerial.flush(); for (int a = 0; a < EEPromBanks; a++) { mySerial.println("EEPROM Memory Bank: " + String(a) ); mySerial.flush(); for (int b = 1; b <= LcdRows; b++) { mySerial.print("Row " + String(b) + ": "); mySerial.flush(); for (int c = 0; c < rLcdChr; c++) { eeaddress = 0; eeaddress = (a * (rLcdChr) * LcdRows) + ((rLcdChr) * b) + c; value = EEPROM.read(eeaddress); mySerial.print(char(value)); mySerial.flush(); } mySerial.println(" "); mySerial.flush(); } } Sbuffer = ""; mySerial.println("No more EEPROM Banks available."); mySerial.flush(); break; } case 4: { value = 0; mySerial.print("Erasing EEPROM "); mySerial.println("YES/NO:"); mySerial.flush(); MnuState = 1; Sbuffer = ""; break; } case 5: { value = 0; mySerial.print("Erasing EEPROM "); mySerial.println("Stand by."); mySerial.flush(); for (int a = 0; a < EEPromBanks; a++) { //Memory Bank a mySerial.println("Clear Bank: " + String(a)); for (int b = 1; b <= LcdRows; b++) { for (int c = 0; c < rLcdChr; c++) { eeaddress = 0; eeaddress = (a * (rLcdChr) * LcdRows) + ((rLcdChr ) * b) + c; FRMCheck = EEPROM.read(eeaddress); if (FRMCheck > 0) { EEPROM.write(eeaddress, 00); // Formatierung mySerial.print("."); value++; delay(30); mySerial.flush(); } } } mySerial.println(""); mySerial.flush(); } mySerial.println(""); mySerial.println("Finished. " + String(value) + " Bytes cleared"); mySerial.println(""); mySerial.flush(); Sbuffer = ""; MnuState = 0; break; } case 6: { value = 0; Sbuffer = ""; MnuState = 0; mySerial.println("OP abort."); mySerial.flush(); break; } case 7: { mySerial.println("EEPPROM Bank Number (0-" + String(EEPromBanks - 1) + "):"); mySerial.flush(); MnuState = 2; value = 0; Sbuffer = ""; break; } case 8: { Selectedbank = value; TextHeader(1); MnuState = 3; Sbuffer = ""; value = 0; break; } case 9: { WriteEEPROM(Selectedbank, 1); TextHeader(2); value = 0; MnuState = 4; Sbuffer = ""; break; } case 10: { WriteEEPROM(Selectedbank, 2); value = 0; MnuState = 0; Sbuffer = ""; TextHeader(3); mySerial.flush(); value = 0; MnuState = 9; Sbuffer = ""; break; } case 11: { value = 0; mySerial.println("EEPPROM Bank Number (0-" + String(EEPromBanks - 1) + "):"); MnuState = 5; Sbuffer = ""; mySerial.flush(); break; } case 12: { SelectedMsg = value; DisplayBank(value); break; } case 13: { value = 0; mySerial.println("EEPPROM Bank Number (0-" + String(EEPromBanks - 1) + "):"); MnuState = 6; Sbuffer = ""; mySerial.flush(); break; } case 14: { a = value; if ( a < EEPromBanks) { mySerial.println("Memory Bank: " + String(a) ); mySerial.flush(); for (int b = 1; b <= LcdRows; b++) { mySerial.print("Row " + String(b) + ": "); mySerial.flush(); for (int c = 0; c < rLcdChr; c++) { eeaddress = 0; eeaddress = (a * (rLcdChr) * LcdRows) + ((rLcdChr) * b) + c; value = EEPROM.read(eeaddress); mySerial.print(char(value)); mySerial.flush(); } mySerial.println(" "); mySerial.flush(); } } else { mySerial.println("Value out of Range."); } value = 0; Sbuffer = ""; MnuState = 0; break; } case 15: { // Direct pPrint to Display Directprint = true; mySerial.println ("Directprint ON."); if (Directprint) { DirectprintROW = 0; DirectprintLine = 0; lcd.clear(); lcd.cursor(); lcd.blink(); } value = 0; Sbuffer = ""; MnuState = 0; break; } case 16: { value = 0; Sbuffer = ""; MnuState = 0; break; } case 20: { WriteEEPROM(Selectedbank, 3); value = 0; MnuState = 0; Sbuffer = ""; TextHeader(4); mySerial.flush(); value = 0; MnuState = 10; Sbuffer = ""; break; } case 21: { WriteEEPROM(Selectedbank, 4); value = 0; MnuState = 0; Sbuffer = ""; break; } default: { mySerial.println("-------Smart Bluetooth Display 1.0------"); mySerial.println("S - Read ALL EEPROM Banks"); mySerial.println("E - Erase ALL EEPROM Banks"); mySerial.println("W - Write sel. EEPROM Bank"); mySerial.println("R - Read sel. EEPROM Bank"); mySerial.println("P - Print EEPROM Bank on Display"); mySerial.println("----------------------------------------"); mySerial.println("D - Direct Print"); mySerial.println("----------------------------------------"); mySerial.println("Type Cmd and press Enter"); mySerial.flush(); MnuState = 0; value = 0; Sbuffer = ""; } } } // Eingabe erkannt } void WriteEEPROM(byte FBank, byte FRow) { byte Writecounter; Writecounter = 0; mySerial.print("Saving "); for (int c = 0; c < rLcdChr; c++) { eeaddress = 0; eeaddress = (FBank * (rLcdChr) * LcdRows) + ((rLcdChr) * FRow) + c; value = EEPROM.read(eeaddress); if (Sbuffer[c] != value) { EEPROM.write(eeaddress, Sbuffer[c]); mySerial.print("."); Writecounter++; } } mySerial.println(" " + String (Writecounter) + " Bytes written."); } void ClearCBuffer () { for (byte a = 0; MaxInputBufferSize - 1; a++) Cbuffer[a] = 0; } byte SerInputHandler() { byte result = 0; int c; int d; int a; int b; result = 0; if (CheckforserialEvent()) { if ((NumberInput) and not (DataInput) and not (StrInput)) //Numbers only { Sbuffer = ""; value = 0; StrInput = false; NumberInput = false; DataInput = false; EnterInput = false; a = 0; b = 0; c = 0; d = 0; Sbuffer = Cbuffer; // Zahl wird AUCH ! in SBUFFER übernommen, falls benötigt. if (Ccount == 1) { value = Cbuffer[0] - 48 ; } if (Ccount == 2) { a = Cbuffer[0] - 48 ; a = a * 10; b = Cbuffer[1] - 48 ; value = a + b; } if (Ccount == 3) { a = Cbuffer[0] - 48 ; a = a * 100; b = Cbuffer[1] - 48 ; b = b * 10; c = Cbuffer[2] - 48 ; value = a + b + c; } if (Ccount == 4) { a = Cbuffer[0] - 48 ; a = a * 1000; b = Cbuffer[1] - 48 ; b = b * 100; c = Cbuffer[2] - 48 ; c = c * 10; d = Cbuffer[3] - 48 ; value = a + b + c + d; } if (Ccount >= 5) { Sbuffer = ""; value = 0; Sbuffer = Cbuffer; ClearCBuffer; result = 2; } else { ClearCBuffer; Ccount = 0; result = 1; //Number Returncode NumberInput = false; StrInput = false; DataInput = false; EnterInput = false; Ccount = 0; return result; } } if ((StrInput) and not (DataInput)) //String Input only { Sbuffer = ""; Sbuffer = Cbuffer; value = 0; StrInput = false; NumberInput = false; DataInput = false; EnterInput = false; Ccount = 0; ClearCBuffer; result = 2; //Number Returncode } if (DataInput) { Sbuffer = ""; Sbuffer = Cbuffer; value = 0; StrInput = false; NumberInput = false; DataInput = false; EnterInput = false; Ccount = 0; ClearCBuffer; result = 3; //Number Returncode } if ((EnterInput) and not (StrInput) and not (NumberInput) and not (DataInput)) { Sbuffer = ""; value = 0; Ccount = 0; ClearCBuffer; result = 4; //Number Returncode } NumberInput = false; StrInput = false; DataInput = false; EnterInput = false; Ccount = 0; return result; } return result; //End CheckforSerialEvent } // Eingabebuffer boolean CheckforserialEvent() { while (mySerial.available()) { // get the new byte: TBuffer = mySerial.read(); if (TBuffer > 9 && TBuffer < 14) { Cbuffer[Ccount] = 0; TBuffer = 0; if (EchoMode) { mySerial.print(char(13)); mySerial.flush(); } if (Directprint) { mySerial.println(""); DirectprintLine = 0; DirectprintROW = DirectprintROW + 1; if ( DirectprintROW > 3) { Directprint = false; lcd.noCursor(); lcd.noBlink(); Sbuffer = ""; value = 0; } else { lcd.cursor(); lcd.blink(); lcd.setCursor(0, DirectprintROW); } } EnterInput = true; return true; } else if (TBuffer > 47 && TBuffer < 58 ) { if ( Ccount < MaxInputBufferSize) { Cbuffer[Ccount] = TBuffer; Ccount++; if ((Directprint)) { lcd.print(char(TBuffer)); DirectprintLine = DirectprintLine + 1; if ( Ccount > MaxInputBufferSize - 1) { lcd.noCursor(); lcd.noBlink(); } else { lcd.cursor(); lcd.blink(); } } if (EchoMode) { mySerial.print(char(TBuffer)); mySerial.flush(); } } else { mySerial.print("#"); } //Number Input detected NumberInput = true; } else if (TBuffer > 64 && TBuffer < 123 ) { if ( Ccount < MaxInputBufferSize) { Cbuffer[Ccount] = TBuffer; Ccount++; if ((Directprint)) { lcd.print(char(TBuffer)); DirectprintLine = DirectprintLine + 1; if ( Ccount > MaxInputBufferSize - 1) { lcd.noCursor(); lcd.noBlink(); } else { lcd.cursor(); lcd.blink(); } } if (EchoMode) { mySerial.print(char(TBuffer)); mySerial.flush(); } } else { mySerial.print("#"); } //Character Char Input detected StrInput = true; } else if ( (TBuffer == 127 ) | (TBuffer == 8 ) ) { if ( DirectprintLine > 0 ) { DirectprintLine = DirectprintLine - 1; lcd.setCursor(DirectprintLine, DirectprintROW); lcd.print(" "); lcd.setCursor(DirectprintLine, DirectprintROW); } if (( DirectprintLine == 0 ) & ( DirectprintROW > 0 )) { DirectprintROW = DirectprintROW - 1; DirectprintLine = rLcdChr - 1; lcd.setCursor(DirectprintLine, DirectprintROW); } if ( Ccount > 0) { Ccount--; Cbuffer[Ccount] = 0; if ((Directprint)) { if ( Ccount > MaxInputBufferSize - 1) { lcd.noCursor(); lcd.noBlink(); } else { lcd.cursor(); lcd.blink(); } } if (EchoMode) { mySerial.print("-"); mySerial.flush(); } } } else { if ( Ccount < MaxInputBufferSize) { Cbuffer[Ccount] = TBuffer; Ccount++; if ((Directprint)) { DirectprintLine = DirectprintLine + 1; if (TBuffer < 128) { lcd.print(char(TBuffer)); } else { lcd.print(String(TBuffer)); } if ( Ccount > MaxInputBufferSize - 1) { lcd.noCursor(); lcd.noBlink(); } else { lcd.cursor(); lcd.blink(); } } if (EchoMode) { mySerial.print(char(TBuffer)); mySerial.flush(); } } else { mySerial.print("#"); } //Data Input detected DataInput = true; } return false; } return false; } void Displayprocessor() // Bei Blauem Display wird auf Scrollfunktion verzichtet, da das nur "schmiert" { if (RefreshDisplay) { lcd.clear(); RefreshDisplay = false; for (int b = 1; b <= LcdRows; b++) { lcd.setCursor(0, b - 1); mySerial.print("Row " + String(b) + ": "); for (int c = 0; c < rLcdChr; c++) { eeaddress = 0; eeaddress = (DisplayBankContent * (rLcdChr) * LcdRows) + ((rLcdChr) * b) + c; value = 0; value = EEPROM.read(eeaddress); if (value > 31) // Sonderzeichen nicht anzeigen { delay(100); lcd.print(char(value)); } else { lcd.print(char(32)); } } } } } void DisplayBank ( byte cobank) { if (cobank < EEPromBanks ) { RefreshDisplay = true; // Initalize Display Output DisplayBankContent = cobank; mySerial.println("Bank " + String(cobank) + " is displayed on LCD"); MnuState = 0; Sbuffer = ""; value = 0; mySerial.flush(); } else { mySerial.println("Bank not available."); value = 0; MnuState = 0; Sbuffer = ""; mySerial.flush(); } }
Nachfolgend werden die durch die Menüerweiterung entstandenen neuen Befehle erklärt.
- S - Read ALL EEPROM Banks
Durch Eingabe von „S“ und Enter werden alle verfügbaren Speicherplätze und deren Inhalt angezeigt. Bei einem 4x20 Zeichen Display und der Standardkonfiguration sind das 11 Speicherplätze. In folgendem Screenshot ist Bank 1 belegt:
- E - Erase ALL EEPROM Banks
Über den Menüpunkt „E“ kann uns sollte beim erstmaligen Gebrauch des Displays der interne EEPROM „formatiert“ werden als auch später im Gebrauch ALLE Speicherbänke gelöscht werden. Ein „Formatierungsvorgang“ sieht auf der Menüoberfläche dann so aus:
- W - Write sel. EEPROM Bank
- R - Read sel. EEPROM Bank
Wenn ein bestimmter Text einer bestimmten Speicherbank ANGEZEIGT aber nicht auf dem Display ausgegeben werden soll, kann dieser über den Menüpunkt „R“ in angezeigt werden.

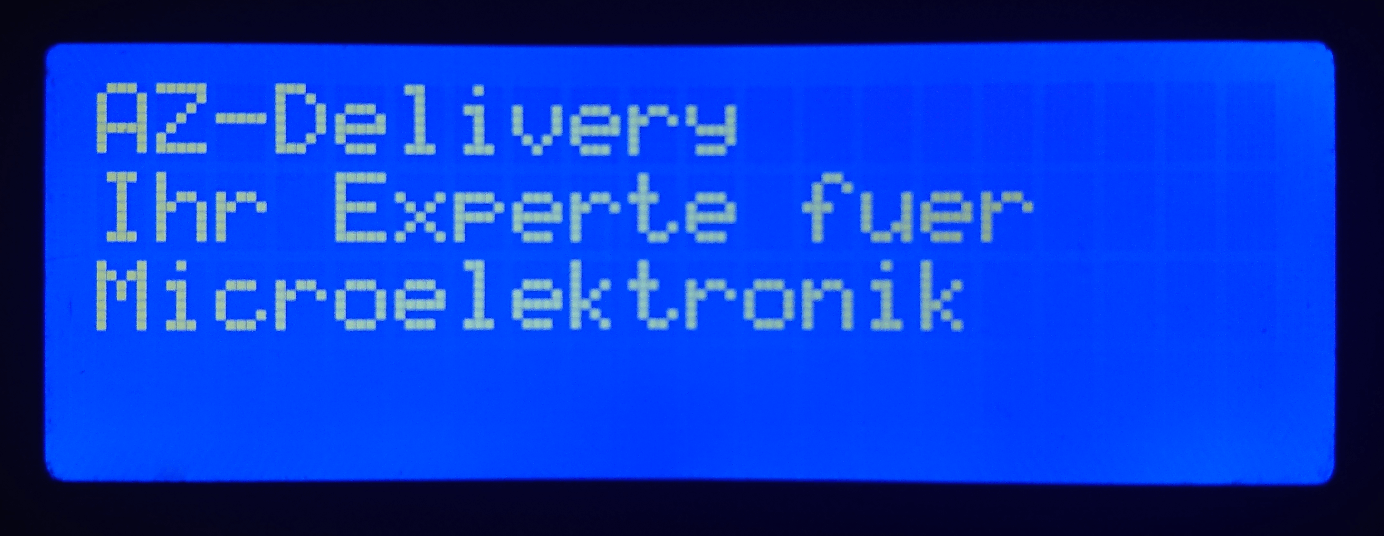

- P - Print EEPROM Bank on Display
Ich wünsche viel Spaß beim Nachbauen und wie immer bis zum nächsten Mal.
